Composite material
穎台科技股份有限公司 - 創造企業競爭力與穩固全球光電材料技術的領導者

Composite material

Excellent molding shrinkage, high heat-resistance, Customization
◆ High polymer composite material technology
After it was developed in the 60s, polycarbonate (PC) has become a widely used material in the electronics, machinery, and automotive industry thanks to its outstanding mechanical strength, impact-resistance, heat-resistance, and dimensional stability, making it the fastest-growing material in engineering plastics. Modified and strengthened engineering plastic offers exceptional qualities such as heat resistance, mechanical characteristics, dimensional stability, halogen-free, fire-resistance, and impact-resistance. The product can be applied to a variety of backlight module plastic frames. Moreover, engineering plastics offer great formability and mechanical characteristics that are suited to the outer casing of electronics products.
Features and advantages
Features Advantages
Excellent
molding shrinkage
Low shrinkage ( 0.4~0.8% )
High
heat-resistance
Good thermal stability
Customization Proprietary formula design that can be adjusted according to the clients' needs
Product specifications and applications
Material Series Product Applications
PC ETR-1001A
ETR-1010A

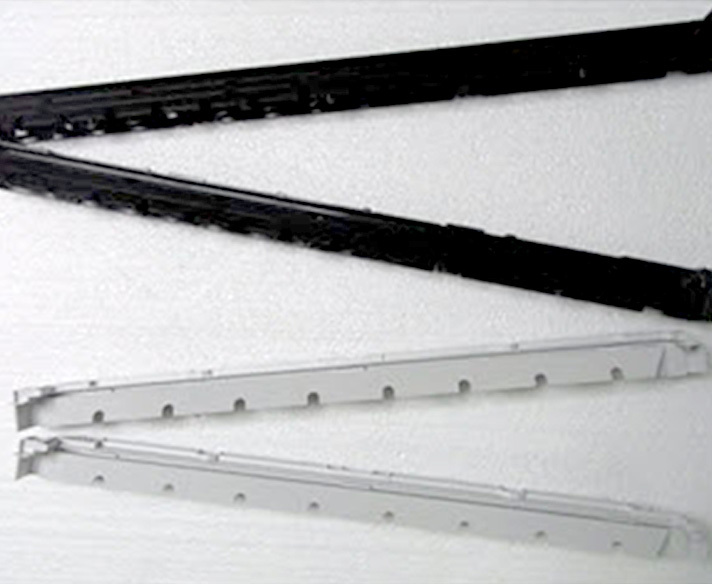

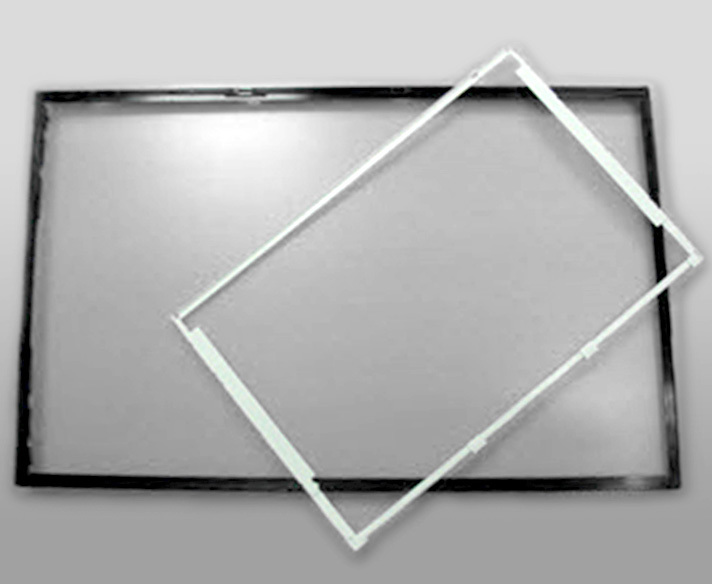

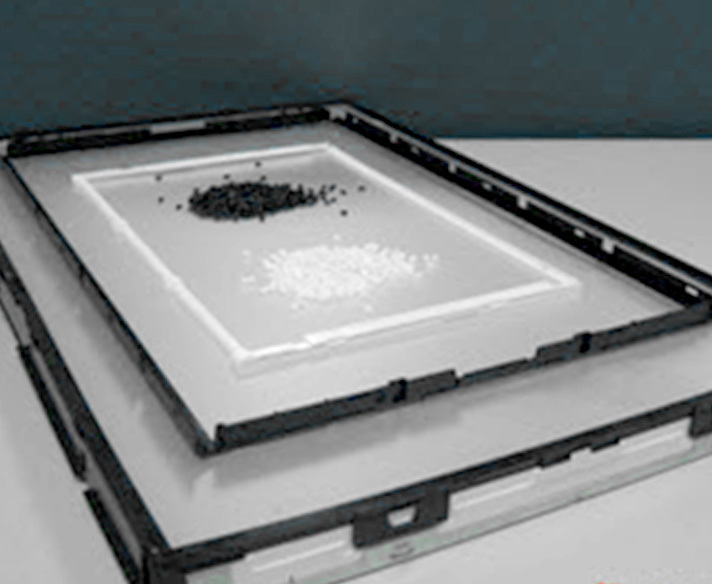

Resin for injection of various types of backlight module plastic frames
High polymer composite material series
PHYSICAL MECHANICAL
PROPERTIES Density Melt flow
index
Tensile
Strength
Flexural
strength
Flexural
moduls
Izod.
Impact
strength
Elongation
Unit g/cm³ g/10 min kg/cm² kg/cm² kg/cm² kj/m² %
Test method ASTM D792 ASTM D1238 ASTM D638 ASTM D638 ASTM D638 ASTM D256 ASTM D638
ETR-1001A PC+10%GF 1.242±0.02 21±4 570 950 27,000 5 11
ETR-1010A PC 1.185±0.02 21±3 580 960 21,500 36 110
Customized specifications available,
please contact us for further details.
