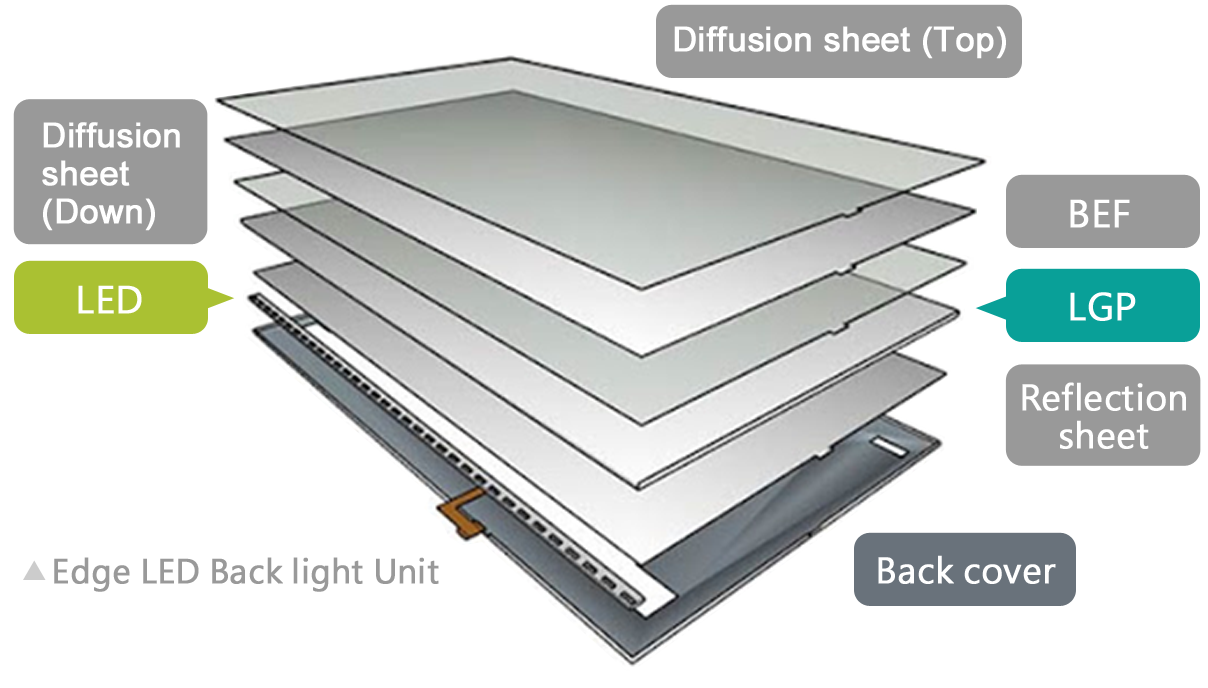

As a professional Light Guide Plate (LGP) manufacturer, Entire has accumulated many years of practical experience in composite LGP material as well as optical and structural design.
From granulation to extrusion, optical grid design, cutting, and polishing, high-precision optical design simulations are conducted in conjunction with diverse ultra-precision forming processes to provide the best optical materials to cater to our clients' display application needs.
Features & Advantages
Features
Advantages
Unique Materials
1. Entire is the 1st manufacture in the industry to utilize MS to produce LGP
2. Low moisture absorption, high transmittance, and high heat resistance
3. Breakthrough material limitations
Structural design extrusion production process
1. 2-dimensional, twin structure design
2. Increases uniformity and luminance
3. Integrated structure, good product quality
4. Continuous production, simple production process, high yield rate
Large slim LGP
1. Excellent stability for product dimension.
Product specifications and applications
Material
Material thickness
Product dimensions
Product Applications
MS PC
0.55~3.0mm
6" ~ 84"
TV screen, commercial display, computer monitor, notebook, tablet, SATNAV, POS terminal, industrial computer, gaming machine, and advertising sign
Comparison between various LGP production processes
Forming process
Dimensions
Output
( monthly output of one production line )
Product features
Extrusion Type A/B
~ 75"
150K
Type A Standard specifications allow clients to carry out post-processing
Type B Double-sided structural design and one-off extrusion, no need for post-processing
Heat pressing Type C
~ 75"
100K
Post processing Small grid design, revised optics results in quicker reaction
Laser Type D
~ 84"
16K
Post processing Supports diverse production models in small quantities

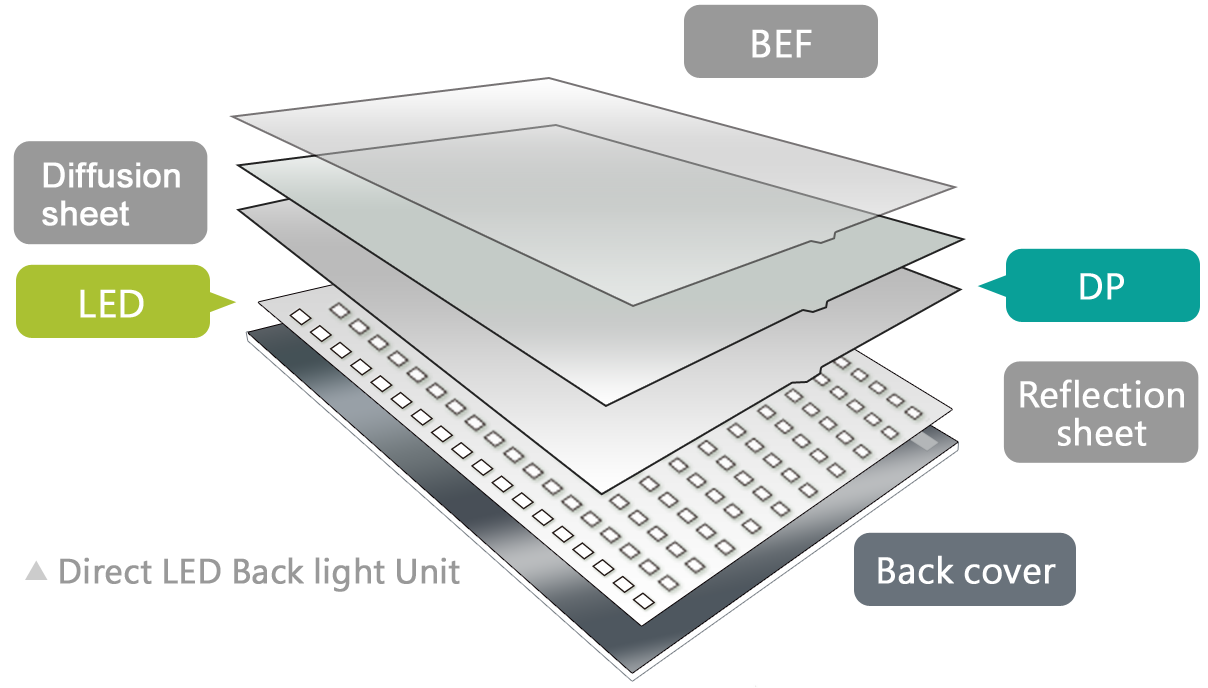

◆ DP technology
As one of the top 3 diffuser manufacturers in the world, Entire has accrued abundant experience in the display application market through a combination of composite diffuser technology as well as optical and structural design.
From formula design, kneading and granulation, extrusion, to cutting, and packaging, we are able to provide our clients with premium optical materials.
Features & Advantages
Features
Advantages
High diffusivity
Effectively masks LED with different transmittance to achieve highly balanced lighting
Excellent transmittance
Proprietary diffusing agent achieves high luminance
Excellent dimensional stability
Co-developed PS material with raw material supplier to achieve low water absorption and high luminance
Structural design
Co-extrusion of multiple layers, structural scattering design, double-sided structural design
Product specifications and applications
Material
Material thickness
Product dimensions
Product Applications
MS PS PC
0.5~3.0mm
~ 120"
TV screen, commercial display, computer monitor, SATNAV, POS terminal, industrial computer, gaming machine, and advertising sign
Diffuser series
Model
Dimensions
Transmittance
Product features
EMS-K series
PS
40~92%
General-purpose diffuser Excellent light diffusing and uniformity
