Material formula, optical and structural design, and customization

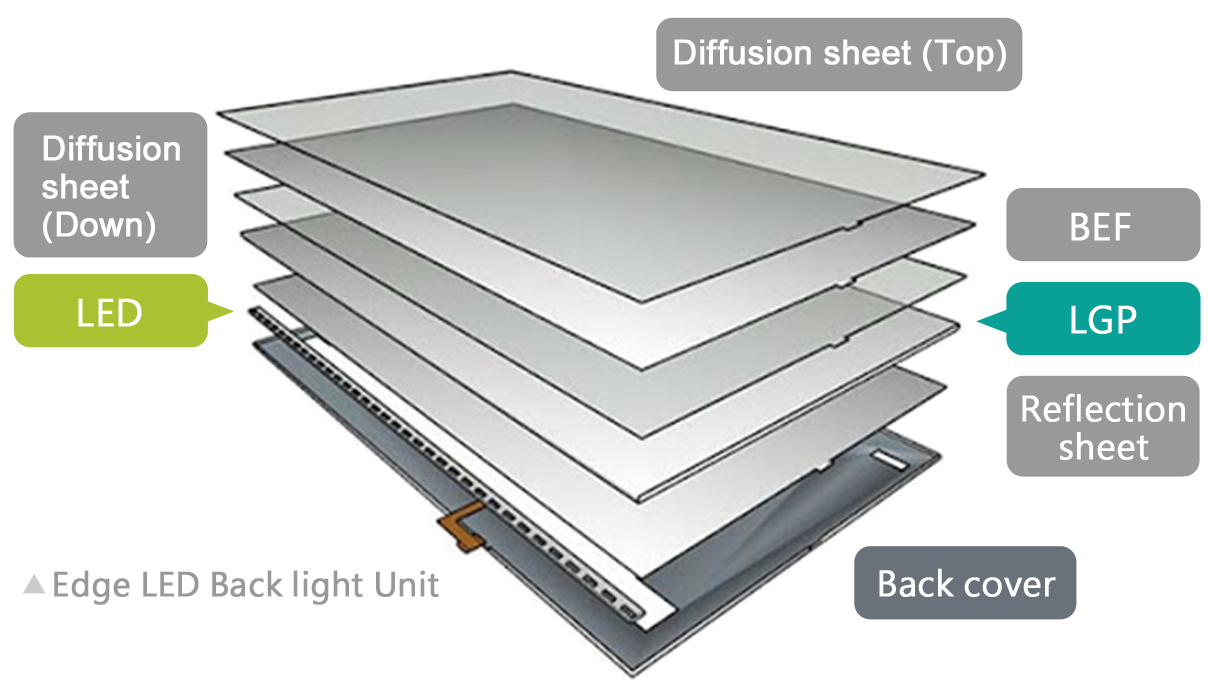

◆ LGP technology
As a professional Light Guide Plate (LGP) manufacturer, Entire has accumulated many years of practical experience in composite LGP material as well as optical and structural design.

From granulation to extrusion, optical grid design, cutting, and polishing, high-precision optical design simulations are conducted in conjunction with diverse ultra-precision forming processes to provide the best optical materials to cater to our clients' car display application needs.
Features and advantages
Features Advantages
Material formula High transmittance PC material,
excellent light-guiding performance
Structural design Double-sided structural design
Product specifications and applications
Material Series Thickness Ddimensions Product features Product Applications
PC ECP-XXX 2.0~3.0mm ~75” • High light guidance performance
• Curved design possible		 Various edge LED backlight modules car displays

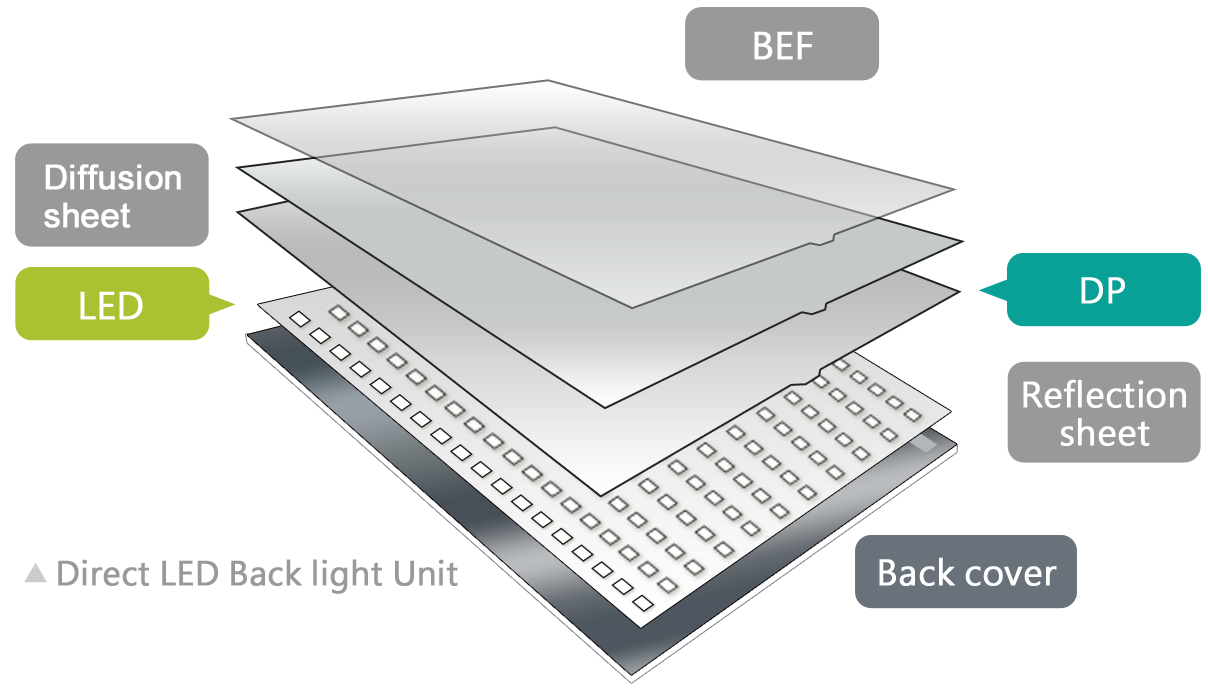

◆ DP technology
As one of the top 3 diffuser manufacturers in the world, Entire has accrued abundant experience in the display application market through a combination of composite diffuser technology as well as optical and structural design.

From formula design, kneading and granulation, extrusion, to cutting, and packaging, we are able to provide our clients with premium optical materials.
Features and advantages
Features Advantages
Material formula Proprietary formula improves PC's UV-resistance
Structural design 2-dimensional microstructure design, excellent diffraction performance
High diffusivity Effectively masks LED with different transmittance to achieve highly balanced lighting.
High masking
performance		 Unique foam extrusion technology increases masking performance through the differences in the air refractive index.
Excellent
weather-resistance		 Heat-resistant PC material prevents the influence of high temperature in the car.
Product specifications and applications
Material Series Thickness Transmittance Product features Product Applications
PC ECD-PXXM 1.0mm 70% Suitable for w/o 2nd Lens backlight Applicable to various type of
Direct LED backlight modules for car displays
ECD-PXXD 0.25~1.0mm 70~95% Increasing luminous efficacy by 5%
ECD-60B 1.0~2.0mm 58% Suitable for w/o 2nd Lens backlight

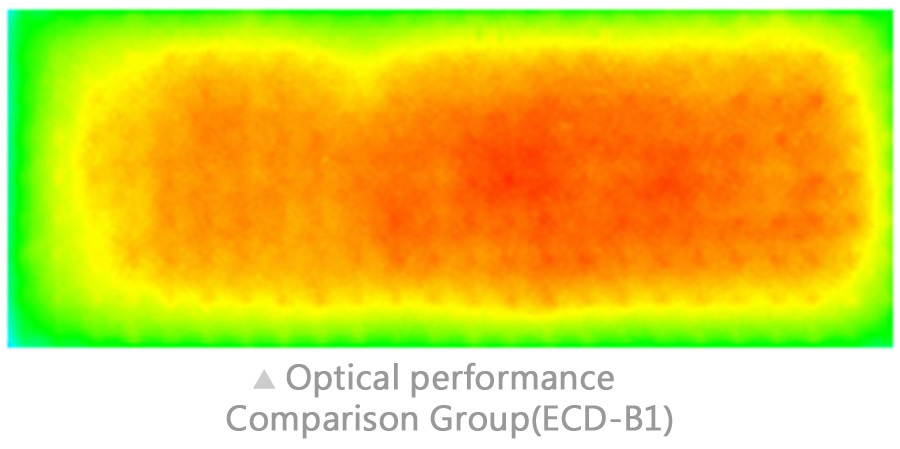

ECD-B1 1.2~1.5mm 38% Excellent diffraction performance and luminous efficacy
Customized specifications available,
please contact us for further details.
